LSS0.3
SWET
LSS0.3
oil gas
12months
Customer's Requirement
85%
Boiler Steel
300kg/h
1150kg
300kg oil gas steam generator / boiler
The China's first CFB boiler manufacturer

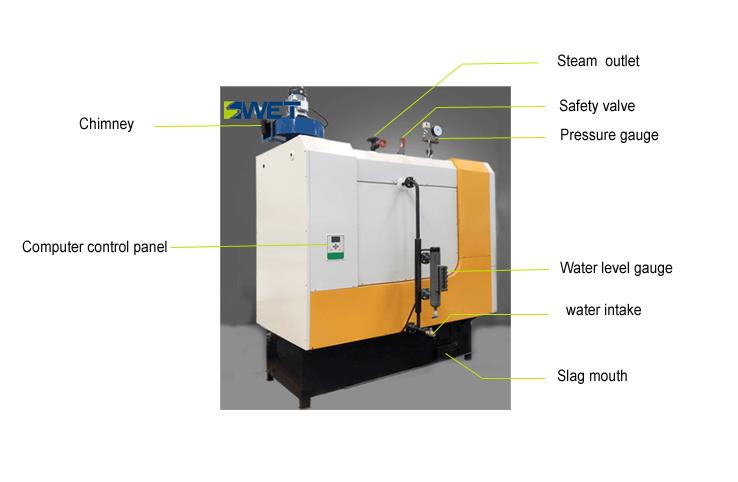

LSS0.3 steam generator
1.The steam generator / boilerfuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning. Only a small amount of powdery ash residue after completely burned retained in the ash collection chamber, easy to handle
2.The steam generator / boiler built-in steam separator solves the problem of steam with water to ensure the quality of the steam.
3. The steam generator / boiler full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient .
1.The steam generator / boilerfuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning. Only a small amount of powdery ash residue after completely burned retained in the ash collection chamber, easy to handle
2.The steam generator / boiler built-in steam separator solves the problem of steam with water to ensure the quality of the steam.
3. The steam generator / boiler full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient .
Gas steam boiler technical parameter | |||||||||||||||
Rated evaporati on | Rated pressure | Rated steam temperat ure | Feed water temperat ure | Design thermal efficienc y | Water capacit y | Steam outlet | water intake | Drain valve | Gas supply pressur e | Gas pipe diamet er | Dimensions | Shippin g weight | Full load biomass consuption | ||
| | | | | | | | | | | L | W | H | | |
Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | Kpa | DN | mm | mm | mm | T | Nm³/h |
80 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1050 | 1000 | 1500 | 0.5 | 6.5(NG) |
100 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1150 | 1100 | 1600 | 0.6 | 8.4(NG) |
150 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 15 | 15 | 20 | 2-3.5 | 20 | 1250 | 1200 | 1700 | 0.7 | 11.7(NG) |
200 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 20 | 15 | 25 | 2-3.5 | 20 | 1600 | 1500 | 2300 | 1.2 | 15.7(NG) |
300 | 0.7 | 170℃ | 20℃ | 92% | 28 | 32 | 15 | 25 | 3.5-5 | 20 | 1700 | 1600 | 2300 | 1.3 | 22.3(NG) |
Gas steam boiler technical parameter | |||||||||||||||
Rated evaporati on | Rated pressure | Rated steam temperat ure | Feed water temperat ure | Design thermal efficienc y | Water capacit y | Steam outlet | water intake | Drain valve | Gas supply pressur e | Gas pipe diamet er | Dimensions | Shippin g weight | Full load biomass consuption | ||
| | | | | | | | | | | L | W | H | | |
Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | Kpa | DN | mm | mm | mm | T | Nm³/h |
80 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1050 | 1000 | 1500 | 0.5 | 6.5(NG) |
100 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1150 | 1100 | 1600 | 0.6 | 8.4(NG) |
150 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 15 | 15 | 20 | 2-3.5 | 20 | 1250 | 1200 | 1700 | 0.7 | 11.7(NG) |
200 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 20 | 15 | 25 | 2-3.5 | 20 | 1600 | 1500 | 2300 | 1.2 | 15.7(NG) |
300 | 0.7 | 170℃ | 20℃ | 92% | 28 | 32 | 15 | 25 | 3.5-5 | 20 | 1700 | 1600 | 2300 | 1.3 | 22.3(NG) |
