500kg Biomass steam generator

Steam generator core advantages:
1.Generate steam only need 5 minutes.
2.The efficiency over 90% ,high quality.
3.Low operating costs.
4.Long life service,Low failure rate.
5.Simple operation, one-button operation.
6.Microcomputer control, multiple protection.
7.Integrated combustion configuration system
8.Complete machine before leave us, remove a lot of installation costs.
  • ydz0.5-0.7-002

  • swet

  • ydz0.5-0.7-002 boiler

  • Biomass steam generator

  • 500kg

  • 90%

  • biomass

  • Boiler Steel

  • 2700kg

  • 0.7Mpa

  • 2200x1500x2500mm

  • 170℃

  • Customer's Requirement

500kg Biomass steam generator


  Safe and reliable: biomass steam generator water capacity of less than 30L, exempt from examination and approval, the boiler using automatic microcomputer control system, equipment, automatic operation control, voltage display at a glance, with overpressure and water interlock protection, The steam generator feed system uses the design concept of the turntable oblique feed to completely eliminate the phenomenon that the biomass steam generator burns the fuel back to the fuel, and truly achieves the double safety of the biomass steam generator body control safety and the combustion system control safety .

  Environmental protection and durability: biomass steam generator with a new multi-tube cyclone dust collector and energy-saving integrated structure, greatly reducing the flue gas temperature, improve thermal efficiency, environmental protection requirements to meet the new national standards; meticulous design, the use of table steel is much higher than peers Standard, the main body of biomass generators in strict accordance with the A-class boiler manufacturing process requirements, by holding the national boiler pipe pressure vessel welder welder for boiler welding, durable.

  The steam generator Easy installation; no need to ask for a professional installation personnel to install, meanwhile saving a lot of installation materials.

  The steam generator full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient.

  Biomass energy is a friendly, non-polluting, renewable, low-carbon energy, and can save 50% cost compared with oil and gas .Use of biomass pellet fuel, convenient storage and transportation ,clean .

  Biomass steam generator parameters
Generator Type SZF0.5t SZF0.7t SZF1.02t SZF1.15t SZF1.6t SZF2.7t
Rated pressure
(MPa)
0.7 0.7 0.7 0.7 0.7 0.7
Rated   steam temperature() 170 170 170 170 170 170
Rated evaporation
(kg/h)
100 150 200 300 400 500
The biggest fuel consumption(kg/h) 17 25 34 47 65 80
Thermal             efficiency 85% 85% 85% 85% 85% 85%
Weight (kg) 600 700 1020 1150 1600 2700
Overall dimensions(LxWxH) 1600x900x1900 1600x900x1900 2150x950x2400 2000x1400x2700 2700x1100x2450 2200x1500x2500

  Gas steam generator parameters
Generator Type SZF0.5t SZF1.02t SZF1.15t SZF1.6t SZF2.7t
Rated pressure
(MPa)
0.7 0.7 0.7 0.7 0.7
Rated   steam temperature() 170 170 170 170 170
Rated evaporation
(kg/h)
100 200 300 400 500
The biggest fuel consumption(NG) 8.4Nm³/h 16.8Nm³/h 23.2Nm³/h 32.1Nm³/h 39.5Nm³/h
Thermal             efficiency 85% 85% 85% 85% 85%
Weight (kg) 600 1020 1150 1600 2700
Overall dimensions(LxWxH) 1600x900x1900 2150x950x2400 2000x1400x2700 2700x1100x2450 2200x1500x2500

Natural gasNGcalorific value 8500Kcal/Nm³
Liquefied petroleum gas (LPG)calorific value  22000 Kcal/Nm³
Light oil calorific value   10300Kcal/Nm³

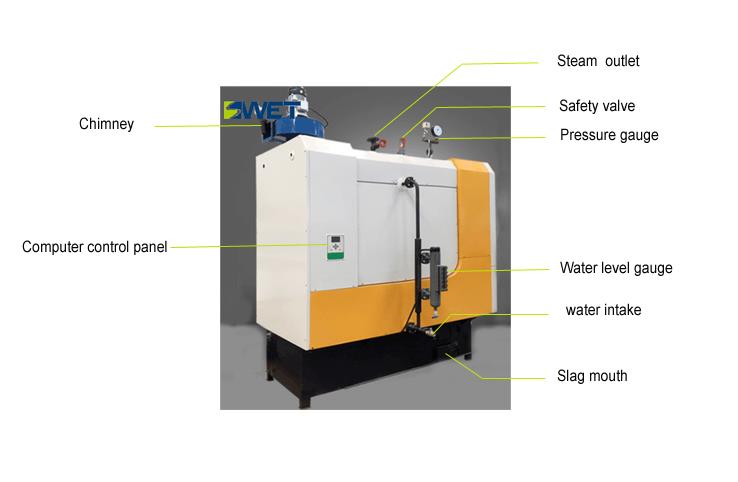

500kg Biomass steam generator

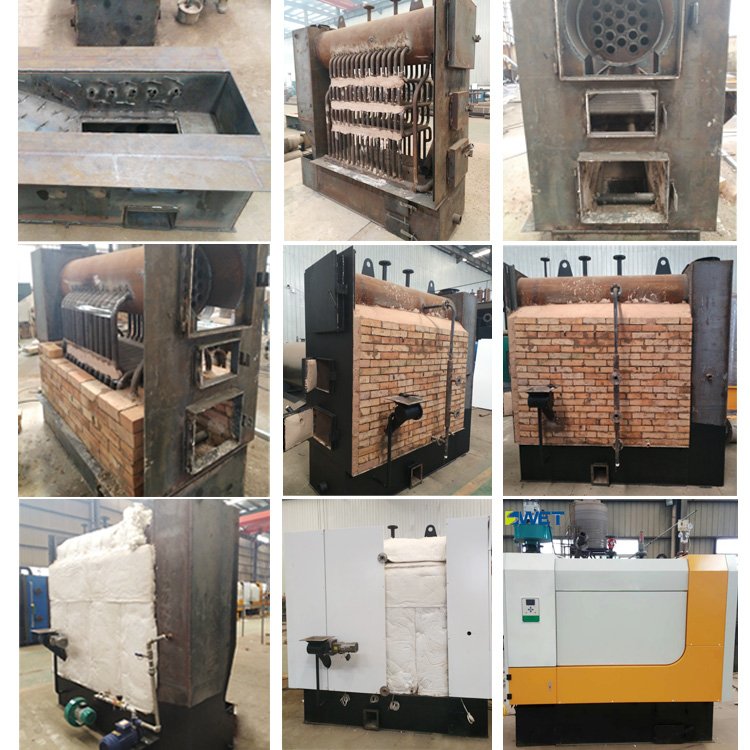

biomass boiler Production process and technical process biomass biomass steam generator
