300kg wood pellet steam generator

Steam generator core advantages:
1.Generate steam only need 5 minutes.
2.The efficiency over 90% ,high quality.
3.Low operating costs.
4.Long life service,Low failure rate.
5.Simple operation, one-button operation.
6.Microcomputer control, multiple protection.
7.Integrated combustion configuration system
8.Complete machine before leave us, remove a lot of installation costs.
  • LSS0.3

  • SWET

  • LSS0.3

  • Biomass

  • 12months

  • Customer's Requirement

  • over 90%

  • Boiler Steel

  • 300kg/h

  • 1150kg

  • 300kg wood pellet steam generator

  • The China's first CFB boiler manufacturer

  • LSS0.3 steam generator

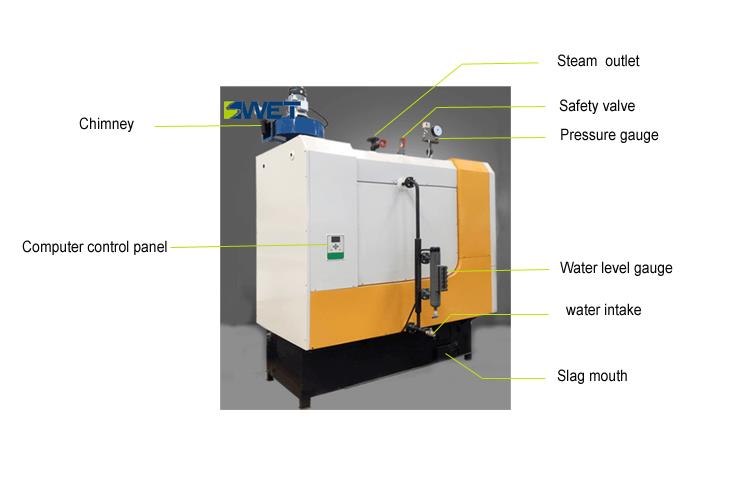

biomass oil gas steam boiler

 1.
The steam generator fuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning. Only a small amount of powdery ash residue after completely burned retained in the ash collection chamber, easy to handle

  2.The steam generator fuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning.

  3.The steam generator built-in steam separator solves the problem of steam with water to ensure the quality of the steam.

  4. The steam generator full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient .

wood pellet steam boiler generator
Biomass steam generator technical
Rated evaporation Rated pressure Rated steam temperature Feed water temperature Design thermal efficiency Water capacity Steam outlet water intake Drain valve Dimensions Shipping weight Full load biomass consumption









L W H

Kg/h Mpa % L DN DN DN mm mm mm T Kg/h
80 0.7 170℃ 20℃ 90% 26.5 15 15 20 1600 900 1750 0.6 13.6
100 0.7 170℃ 20℃ 90% 26.8 15 15 20 1600 900 1900 0.65 16.4
150 0.7 170℃ 20℃ 90% 27 15 15 20 1650 900 1900 0.7 24.6
200 0.7 170℃ 20℃ 90% 27 20 15 25 2150 1000 2400 1.2 32.8
300 0.7 170℃ 20℃ 93% 28 25 15 25 2000 1400 2700 1.35 46.1
400 0.7 170℃ 20℃ 93% 28.7 32 15 25 2350 1750 2200/2500 3 61.5
500 0.7 170℃ 20℃ 93% 29 32  15\25 25 2500 1800 2500/3100 4.1 76.8
600 0.7 170℃ 20℃ 93% 29.5 32 15 25 2500 1800 2500/3100 4.3 80
1000 0.7 170℃ 20℃ 92% 29 32 15 25 3000 2300 2500 6 153.5

biomass steam boiler
steam generator

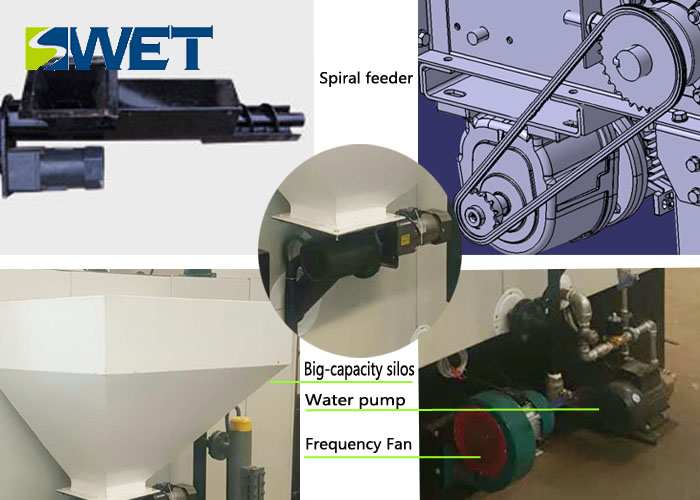

biomass steam generator
