LSS0.4
SWET
LSS0.4
Biomass
12months
Customer's Requirement
over 90%
Boiler Steel
400kg/h
1600kg
400kg biomass steam generator
The China's first CFB boiler manufacturer

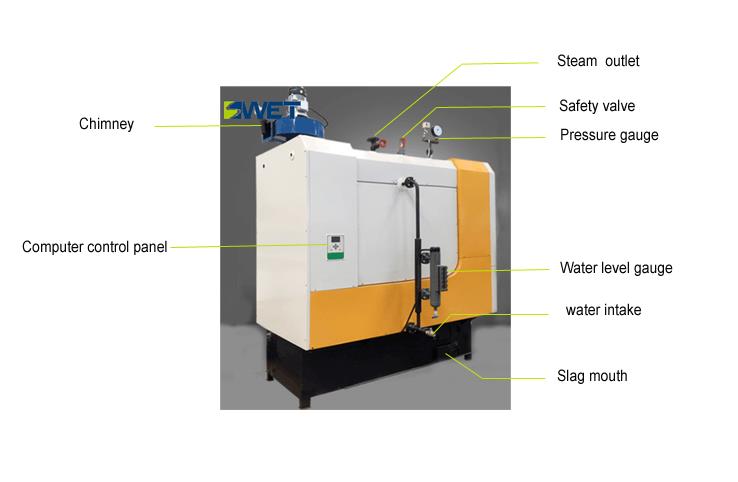

LSS0.4 steam generator
1.The steam generator fuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning. Only a small amount of powdery ash residue after completely burned retained in the ash collection chamber, easy to handle
2.The steam generator fuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning.
3.The steam generator built-in steam separator solves the problem of steam with water to ensure the quality of the steam.
4. The steam generator full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient .
1.The steam generator fuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning. Only a small amount of powdery ash residue after completely burned retained in the ash collection chamber, easy to handle
2.The steam generator fuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning.
3.The steam generator built-in steam separator solves the problem of steam with water to ensure the quality of the steam.
4. The steam generator full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient .
Biomass steam generator technical | |||||||||||||
Rated evaporation | Rated pressure | Rated steam temperature | Feed water temperature | Design thermal efficiency | Water capacity | Steam outlet | water intake | Drain valve | Dimensions | Shipping weight | Full load biomass consumption | ||
| | | | | | | | | L | W | H | | |
Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | mm | mm | mm | T | Kg/h |
80 | 0.7 | 170℃ | 20℃ | 90% | 26.5 | 15 | 15 | 20 | 1600 | 900 | 1750 | 0.6 | 13.6 |
100 | 0.7 | 170℃ | 20℃ | 90% | 26.8 | 15 | 15 | 20 | 1600 | 900 | 1900 | 0.65 | 16.4 |
150 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 1650 | 900 | 1900 | 0.7 | 24.6 |
200 | 0.7 | 170℃ | 20℃ | 90% | 27 | 20 | 15 | 25 | 2150 | 1000 | 2400 | 1.2 | 32.8 |
300 | 0.7 | 170℃ | 20℃ | 93% | 28 | 25 | 15 | 25 | 2000 | 1400 | 2700 | 1.35 | 46.1 |
400 | 0.7 | 170℃ | 20℃ | 93% | 28.7 | 32 | 15 | 25 | 2350 | 1750 | 2200/2500 | 3 | 61.5 |
500 | 0.7 | 170℃ | 20℃ | 93% | 29 | 32 | 15\25 | 25 | 2500 | 1800 | 2500/3100 | 4.1 | 76.8 |
600 | 0.7 | 170℃ | 20℃ | 93% | 29.5 | 32 | 15 | 25 | 2500 | 1800 | 2500/3100 | 4.3 | 80 |
