YDZ0.5
SWET
YDZ0.5
oil(gas)
12months
Customer's Requirement
90%
Boiler Steel
500kg/h
2700kg
500kg oil gas steam generator
YDZ0.5
Italy Riello
1.The steam generator / boiler fuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning. Only a small amount of powdery ash residue after completely burned retained in the ash collection chamber, easy to handle
2.The steam generator / boiler fuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning.

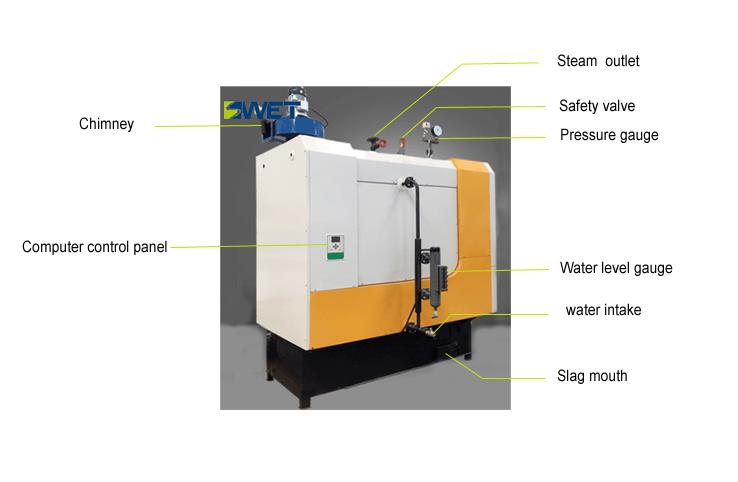

3.The steam generator / boiler built-in steam separator solves the problem of steam with water to ensure the quality of the steam.
4. The steam generator / boiler full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient .
1.The steam generator / boiler fuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning. Only a small amount of powdery ash residue after completely burned retained in the ash collection chamber, easy to handle
2.The steam generator / boiler fuel is energy-saving and environmentally friendly biomass. It is renewable, wide range of sources, affordable, and its running cost is one sixth of electric boiler, and a third of oil-fired boiler. There is no smoke and dust put off when burning.
3.The steam generator / boiler built-in steam separator solves the problem of steam with water to ensure the quality of the steam.
4. The steam generator / boiler full automatic control. Just connect the water and electricity; press the key, then the boiler will automatically enter the automatic running, safer and more convenient .
Gas steam boiler technical parameter | |||||||||||||||
Rated evaporati on | Rated pressure | Rated steam temperat ure | Feed water temperat ure | Design thermal efficienc y | Water capacit y | Steam outlet | water intake | Drain valve | Gas supply pressur e | Gas pipe diamet er | Dimensions | Shippin g weight | Full load biomass consuption | ||
| | | | | | | | | | | L | W | H | | |
Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | Kpa | DN | mm | mm | mm | T | Nm³/h |
80 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1050 | 1000 | 1500 | 0.5 | 6.5(NG) |
100 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1150 | 1100 | 1600 | 0.6 | 8.4(NG) |
150 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 15 | 15 | 20 | 2-3.5 | 20 | 1250 | 1200 | 1700 | 0.7 | 11.7(NG) |
200 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 20 | 15 | 25 | 2-3.5 | 20 | 1600 | 1500 | 2300 | 1.2 | 15.7(NG) |
300 | 0.7 | 170℃ | 20℃ | 92% | 28 | 32 | 15 | 25 | 3.5-5 | 20 | 1700 | 1600 | 2300 | 1.3 | 22.3(NG) |
400 | 0.7 | 170℃ | 20℃ | 92% | 28.6 | 32 | 15 | 25 | 3.5-5 | 32 | 2350 | 1750 | 2200 | 2.8 | 30.5(NG) |
500 | 0.7 | 170℃ | 20℃ | 92% | 29 | 40 | 15 | 25 | 3.5-5 | 32 | 3200 | 1500 | 2100/2500 | 3 | 37.9(NG) |
600 | 0.7 | 170℃ | 20℃ | 92% | 29 | 40 | 15 | 25 | 3.5-5 | 32 | 3200 | 1500 | 2500 | 4.2 | 46.9(NG) |
1000 | 0.7 | 170℃ | 20℃ | 92% | 29 | 40 | 15 | 25 | 3.5-5 | 32 | 3000 | 2300 | 2500 | 6.0 | 74.6 (NG) |
Gas steam boiler technical parameter | |||||||||||||||
Rated evaporati on | Rated pressure | Rated steam temperat ure | Feed water temperat ure | Design thermal efficienc y | Water capacit y | Steam outlet | water intake | Drain valve | Gas supply pressur e | Gas pipe diamet er | Dimensions | Shippin g weight | Full load biomass consuption | ||
| | | | | | | | | | | L | W | H | | |
Kg/h | Mpa | ℃ | ℃ | % | L | DN | DN | DN | Kpa | DN | mm | mm | mm | T | Nm³/h |
80 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1050 | 1000 | 1500 | 0.5 | 6.5(NG) |
100 | 0.7 | 170℃ | 20℃ | 90% | 27 | 15 | 15 | 20 | 2-3.5 | 20 | 1150 | 1100 | 1600 | 0.6 | 8.4(NG) |
150 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 15 | 15 | 20 | 2-3.5 | 20 | 1250 | 1200 | 1700 | 0.7 | 11.7(NG) |
200 | 0.7 | 170℃ | 20℃ | 90% | 27.6 | 20 | 15 | 25 | 2-3.5 | 20 | 1600 | 1500 | 2300 | 1.2 | 15.7(NG) |
300 | 0.7 | 170℃ | 20℃ | 92% | 28 | 32 | 15 | 25 | 3.5-5 | 20 | 1700 | 1600 | 2300 | 1.3 | 22.3(NG) |
400 | 0.7 | 170℃ | 20℃ | 92% | 28.6 | 32 | 15 | 25 | 3.5-5 | 32 | 2350 | 1750 | 2200 | 2.8 | 30.5(NG) |
500 | 0.7 | 170℃ | 20℃ | 92% | 29 | 40 | 15 | 25 | 3.5-5 | 32 | 3200 | 1500 | 2100/2500 | 3 | 37.9(NG) |
600 | 0.7 | 170℃ | 20℃ | 92% | 29 | 40 | 15 | 25 | 3.5-5 | 32 | 3200 | 1500 | 2500 | 4.2 | 46.9(NG) |
1000 | 0.7 | 170℃ | 20℃ | 92% | 29 | 40 | 15 | 25 | 3.5-5 | 32 | 3000 | 2300 | 2500 | 6.0 | 74.6 (NG) |
