6t/h gas oil steam boiler

1.The WNS horizontal automatic fuel steam boiler is a horizontal quick-loading internal combustion three-pass fire tube boiler.

2.The bias furnace bile wet back structure is adopted. The second and third return smoke pipes are flushed by the high-temperature flue gas sequentially, and then discharged into the atmosphere from the rear smoke chamber through the chimney.

3.The boiler is equipped with active front and rear smokebox covers to facilitate boiler overhaul.
  • WNS6

  • SWET

  • WNS6

  • Gas(oil)

  • Customer's Requirement

  • WNS6

  • Industrial Production

  • 1.25mpa

  • 12 Months

  • 194/204℃

  • 96.58%

  • 6t/h gas boiler

  • 6t/h gas steam boiler

     1 Boiler with light oil and natural gas as design fuel can also burn city gas or liquefied petroleum gas with wide adaptability, high efficiency and low energy consumption.

     2 The boiler body adopts full butt weld wet back structure, low-profile full-wave furnace, boiler structure flexibility and heat-retractable, safe and reliable.

     3 The use of 80mm thick aluminum silicate fiber insulation layer, light weight, good thermal insulation, heat loss.

     4 Boiler computer control, high degree of automation, all kinds of safety protection device is complete, easy to operate, safe and reliable operation.

     5 Boiler automation instrumentation and auxiliary equipment is reasonable, advanced and reliable.

     6 The boiler body resistance is small, stable operation, saving power consumption, low noise.

     7. Quick-mounted overall structure, small size, compact structure, easy installation.

     8 There is no smoke in the boiler discharge, the emission concentration of SO2 and NOx is extremely low, and the environmental benefit is remarkable.

  oil gas boiler
Model Unit WNS6-1.25(1.6)-Q(Y)
Rated capacity t/h 6
Working pressure Mpa 1.25/1.6
Steam temperature 194/204
Feed temperature 105
Testing efficiency 96.58
Diesel consumption   Kg/h 379.32
 Gas consumption  Nm³/h 433.51
Outline dimension mm(L*W*H) 5470*2770*3195

WNS horizontal automatic fuel steam boiler is mainly used for:

  1.  Aquaculture, animal husbandry, planting, seed plant, livestock slaughterhouse; chemical industry fertilizer plant, oil refinery, feed mill, coating plant, plastic factory, glass factory , glass factories, sulfuric acid plants; manufacturing paper mills, textile mills, milk factories, wineries, food factories, shoe factories, ceramics factories, furniture factories, tire factories, cigarette factories, mat factories, chopsticks factories, printing plants , tape factory, hardware factory, floor factory, cabinet factory, wooden door factory; bath center, hotel, school and so on.

 2. Its role: heating, insulation, drying, heating, smelting, supply production, disinfection, sterilization, curing, hot water supply.

gas boiler

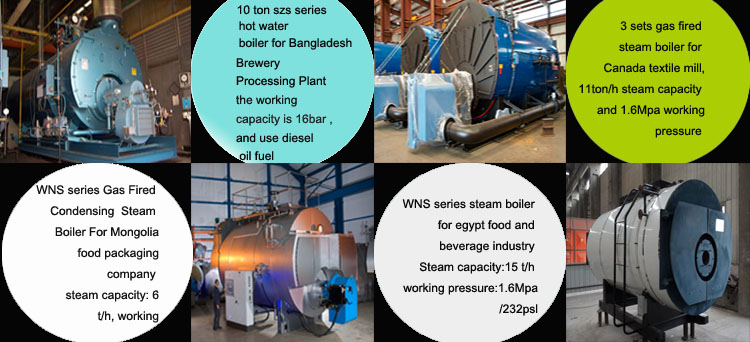

Case
steam boiler
