This oil &gas steam boiler is five-return fire tube hot water boiler.

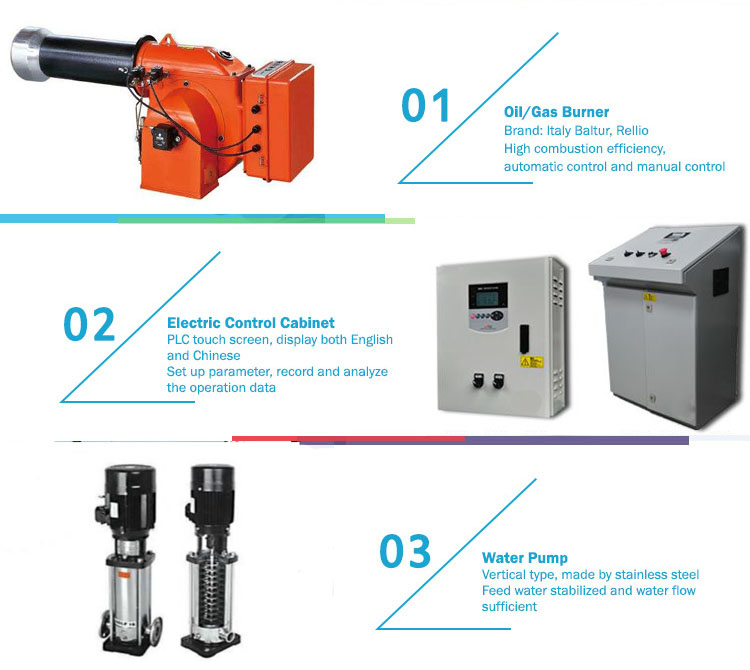

The burning control, water feed, programs run, etc, is full automatic.It equipped with a bias furnace tube structure, and high temperature gas into the atmosphere through five-return smoke tube, smoke chamber. It equipped with good performance burner and advanced techniques.
This fantasy boiler is safe and reliable, and also has the advantage of compact structure, simple operation, easy installation, high efficiency, less pollution and noise, etc
Model | Unit | WNS3.5 |
Rated capacity | MW | 3.5 |
Working pressure | Mpa | 0.7(1.0)(1.25) |
Steam temperature | ℃ | 95(115)(130) |
Feed temperature | ℃ | 20 |
Testing efficiency | % | 96.01 |
Diesel consumption | Kg/h | 337.66 |
Gas consumption | Nm³/h | 385.9 |
Outline dimension | mm(L*W*H) | 5200*2605*2910 |
